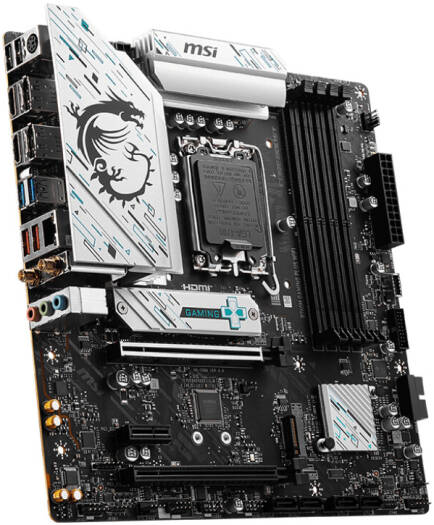

MSI MOTHERBOARD MPG B760M EDGE TI WIFI

Key Specifications

• CPU Support: Intel® 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron® processors (LGA 1700 socket)

• Chipset: Intel B760

• Memory: 4 x DDR5 DIMM slots, supporting up to 192GB at 7200+ MHz (OC)

• Expansion Slots:

  • 1 x PCIe 5.0 x16 slot

  • 1 x PCIe 3.0 x1 slot

• Storage:

  • 3 x M.2 slots with Lightning Gen4 support

  • 4 x SATA 6Gb/s ports

• Networking:

  • Intel Wi-Fi 6E

  • 2.5G LAN

  • Bluetooth 5.3

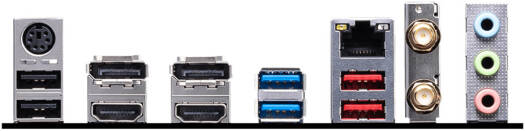

• USB Ports:

  • USB 3.2 Gen 2×2 Type-C

  • Multiple USB 3.2 Gen 2 and Gen 1 ports

• Audio: High-definition 7.1-channel audio

• Form Factor: Micro-ATX​

 Features

• Enhanced Power Design: 12+1+1 Duet Rail Power System with dual 8-pin CPU power connectors ensures stable power delivery for high-performance CPUs.

• Thermal Solutions: Extended heatsink design and M.2 Shield Frozr provide efficient heat dissipation for sustained performance.

• User-Friendly Design: Features like a pre-installed I/O shield and screwless M.2 installation simplify the building process.

• Aesthetic Appeal: The silver-white color scheme offers a unique and stylish look for custom builds.​
