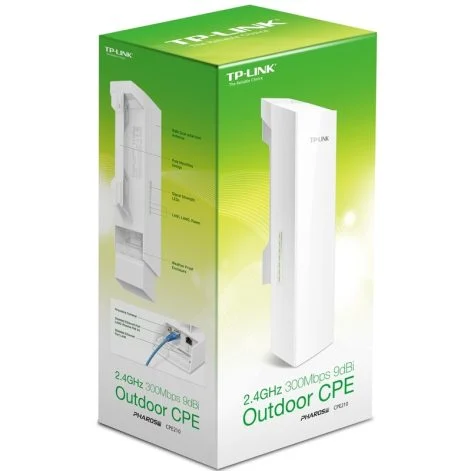

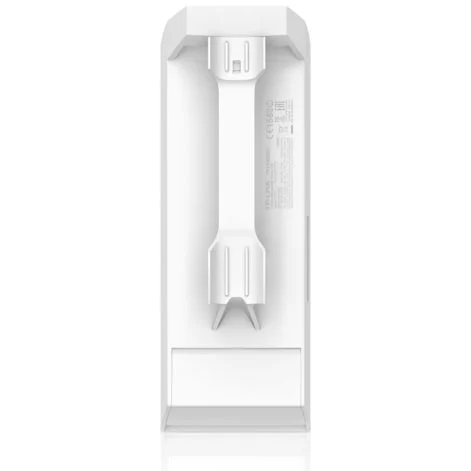

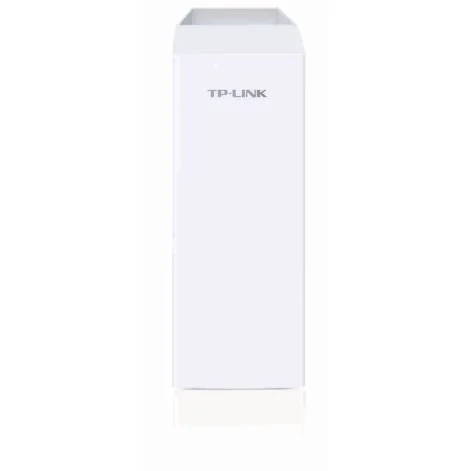

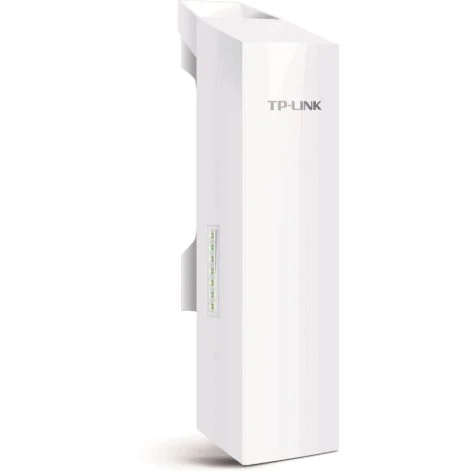

TP-Link CPE210 Outdoor Access Point

Key Features:

• Wireless Speed: Supports wireless speeds up to 300Mbps on the 2.4GHz band, ensuring stable and fast connections.

• Antenna: Equipped with a 9dBi 2×2 dual-polarized directional MIMO antenna, providing enhanced signal strength and reduced interference.

• Transmission Power: Adjustable transmission power from 0 to 27dBm (500mW), allowing for flexible deployment based on distance and environment

• Pharos MAXtream TDMA Technology: Utilizes Time-Division Multiple Access (TDMA) to improve throughput, capacity, and latency, making it ideal for high-density deployments.

• Pharos Control: Centralized management system that enables easy monitoring, configuration, and maintenance of multiple devices from a single location.

• Operating Modes: Supports multiple operation modes, including AP, Client, AP Router, and AP Client Router (WISP), providing flexibility for various networking scenarios.

• Power Supply: Powered via Passive PoE, simplifying installation and reducing cable clutter.

• Protection: Features 6KV lightning protection and 15KV ESD protection, ensuring durability and reliability in harsh outdoor environments.

• Weatherproof Enclosure: Designed with an IPX5-rated enclosure to withstand various weather conditions, ensuring continuous operation in outdoor settings.

Specifications:

• Frequency Band: 2.4GHz

• Wireless Standards: IEEE 802.11b/g/n

• Processor: Qualcomm Atheros 560MHz CPU

• Memory: 64MB DDR2 RAM, 8MB Flash

• Ethernet Port: 1 × 10/100Mbps Shielded Ethernet Port (Passive PoE in)

• Dimensions: 224 × 79 × 60 mm

• Weight: 0.6 kg

• Operating Temperature: –40°C to 70°C

• Power Consumption: Max 5W

Ideal Applications:

• Wireless Internet Service Providers (WISPs): Deploying internet services to remote or underserved areas.

• Campus Networks: Providing wireless coverage across large educational or industrial campuses.

• Surveillance Systems: Connecting security cameras and monitoring systems over long distances.

• Rural Connectivity: Establishing internet access in rural or hard-to-reach locations.

The TP-Link CPE210 offers a cost-effective solution for outdoor wireless networking, combining robust hardware with advanced software features to deliver reliable and high-speed connectivity over long distances.
